Power
11020W
-
Hashrate
1.16 PH/s
-
Efficiency
9500 J/P
-
Algorithm
SHA-256

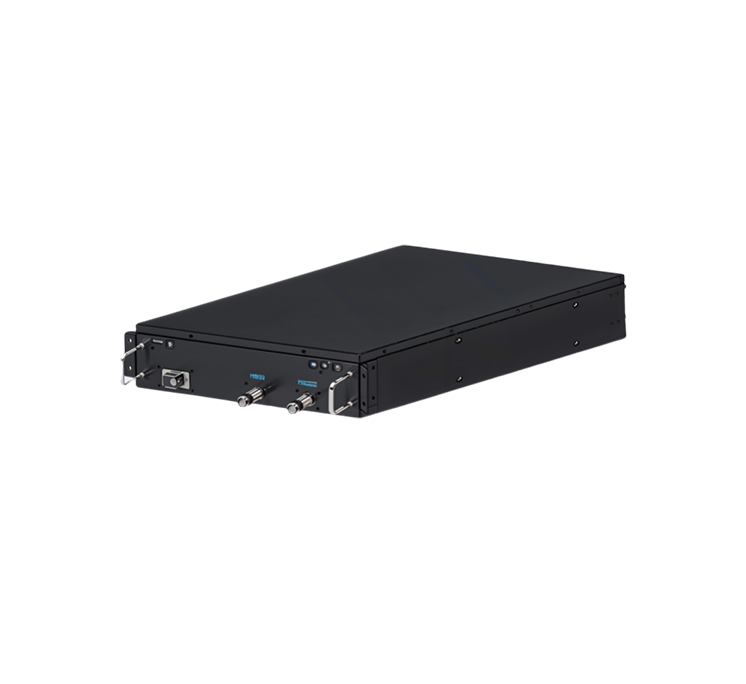

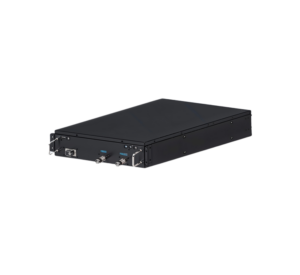

Bitmain Antminer S23 Hyd 3U Bitcoin Miner 1.16PH/S | BT-MINERS
WasUS$29,800.00US$20,860.00
Up to 100% better than the previous generation
Supports 24/7 continuous operation
Warranty : Come with 6-month factory warranty.
S23 Hyd 3U Profitability
Daily est.earnings
Daily est.reward
ROI
Electricity
Electricity ratio
Profit
Miner Profitability History
Description
Antminer S23 Hyd 3U Description
The Bitmain Antminer S23 Hydro 3U excel at SHA-256. It is a industrial-grade miner made for people who want the best hash power.It can deliver 1160 Th/s while consuming 11020W of power. The Bitmain Antminer S23 Hydro 3U is the best for companies that mine cryptocurrency. It does not use fans, like other machines. Instead the Bitmain Antminer S23 Hydro 3U uses an advanced hydro cooling system. As such system ensures whisper-quiet, ultra-efficient heat dissipation while maintain high consistent output.
Built for the rigors of heavy-duty infrastructure, this 42kg titan thrives in demanding environments, operating flawlessly between 20°C and 50°C to turn complex algorithms into tangible results.
For Brand NEW Miner, Bitmain Provides 365 days of factory warranty.
Technical Specifications
| Product Glance | Value |
|---|---|
| Model | U3S23H |
| Crypto algorithm/coins | SHA256|BTC/BCH/BSV |
| Typical hashrate | 1,160T |
| Power on wall @35℃, Watt | 11,020 |
| Power efficiency on wall@35℃ | 9.5 |
| Detailed Characteristics | Value |
|---|---|
| Power Supply | |
| Phase | 3 |
| Input voltage, Volt | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 24 （Power Port：LP34） |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server size(length*width*height, w/o package), mm | 900*482.6*130 |
| Server size(length*width*height, with package), mm | 1,150*640*260 |
| Net weight, kg | 42.0 |
| Gross weight, kg | 48.0 |
| Environment Requirements | Value |
|---|---|
| Inlet coolant temperature, °C | 20~50 |
| Coolant flow, L/min | 16.0~20.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant | Antifreeze/Pure water/Deionized water |
| Coolant pH value | Antifreeze: 7.0~9.0 Pure water: 6.5~7.5 Deionized water：8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD14 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
| Operation temperature,°C | -20~45 |
| Operation altitude, m | ≤2000 |
| What's in the Box | Value |
|---|---|
| Original factory mining machinery | ✓ |
| Power supply | ✓ |
| Shockproof packaging | ✓ |
Notes
(1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(2) Caution: Wrong input voltage may cause server damaged.
(3) The noise is loudest when the fan is under maximum RPM(rotation per minute).
(4) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
Estimate time
Please select your preferred product batch – Available Now (In Stock) for immediate shipment or Month Batch for delivery within your chosen timeframe. If no selection is needed, the product is in stock and ready to ship. If you haven’t received your miner after the estimated time, please contact us at [email protected], and our team will assist you promptly.
Shipping
All used miners will undergo testing by our certified technicians before shipping, which requires 3-5 business days. New miners will be shipped from our Shenzhen or Hong Kong warehouse, with international delivery taking approximately 5-10 business days via DHL. Once your order is shipped, you will receive a confirmation email with a tracking number. Shipping fees are calculated based on product type and weight, varying by region.
Returning policy
All sales are final and non-refundable after shipment, but we offer repair and replacement services if there are technical issues with your miner.
Minable pools for
Partners
Antminer S23 HYD 3U Description
Antminer S23 HYD 3U DescriptionThe Bitmain Antminer S23 Hyd 3U is a next-generation hydro-cooled SHA-256 miner engineered for high-performance Bitcoin mining at industrial scale. It delivers an impressive 1.16PH/s hashrate with a leading 9.5J/TH energy efficiency, making it one of the most powerful and cost-effective hydro miners available. Designed for professional farms, the S23 Hyd requires 380–415V three-phase power, an LP34 connector, and a stable closed-loop water-cooling system.
This machine is 900 x 482 x 130mm. It fits in a 3U rack.This high flow liquid can be mixed with antifreeze or just water to keep the machine at the exact temperature.
It also has an internet connection it uses an RJ45 Ethernet cable. This makes it easy to use the S23 Hydro 3U in mining farms. The S23 Hydro 3U is a choice, for people who want a reliable machine. With a wide storage temperature range of -20°C to 70°C and a robust 10–90% humidity tolerance, the S23 Hydro 3U is not just a miner—it is a resilient investment designed to anchor the world’s most advanced mining operations.
At BT-MINERS, we provide fast worldwide delivery, secure checkout, professional diagnostics, and full support for bulk orders and mining facility deployments.
Product Certification
Bitmain’s Legacy and the Antminer Series
Bitmain has long been recognized as one of the most influential companies in the global cryptocurrency mining industry. Established in 2013, the company quickly became a pioneer in the development of high-performance ASIC mining hardware. Over the years, Bitmain’s engineering breakthroughs have shaped the evolution of blockchain mining, helping miners achieve higher profitability, lower energy consumption, and unprecedented operational efficiency.
At the core of Bitmain’s success is its legendary Antminer series—a lineup of ASIC miners covering major algorithms such as SHA-256, Equihash, Scrypt, Kadena, and more. Antminers are known worldwide for their stability, durability, and competitive edge in mining performance. The product line has produced some of the most iconic models in mining history, including the Antminer S9, S19 Pro, L7, Z15, and the latest next-generation units such as the S21 and Z15 Pro.
Each Antminer generation not only improves hashing efficiency but also introduces advanced chip architecture, enhanced cooling systems, and optimized firmware designed for 24/7 operation. The series has become the global standard for both home miners and industrial-scale mining farms, offering unmatched reliability and long-term performance.
Today, Bitmain continues to push the boundaries of ASIC technology, developing miners that deliver higher output with lower power consumption. The company’s commitment to quality and innovation has solidified the Antminer brand as the benchmark of professional cryptocurrency mining—trusted by millions of miners across the world.
Product Compete
Antminer S23 Hyd 3U vs S21 Hyd
| Specification | Antminer S23 Hyd 3U | Antminer S21 Hyd |
|---|---|---|
| Hashrate | 1.16 PH/s | 335–580 TH/s (model dependent) |
| Power Draw | Around 11 kW | Around 5.3 kW |
| Efficiency | ≈9.5 J/TH | ≈16 J/TH |
| Cooling System | Water-cooled, hydro loop | Water-cooled |
| Power Input | 380–415V, three-phase | 380–415V, three-phase |
| Form Factor | Compact 3U design | Larger hydro chassis |
| Noise Level | Low (no high-speed fans) | Low |
| Best Use Case | Industrial farms, high-density racks | Mid-size farms |
| Infrastructure Needs | High | Medium |
-
Processing&Shipping Time
-
Payment Policies
-
Taxes and Custom Duties
Processing&Shipping Time
Payment Policies
Taxes and Custom Duties
All shipments will go out by UPS or DHL.
Please contact us if any documentations are requested by customs.
Our product are excluded of all value added taxes and customs duties sold by BT-Miners. You will be solely responsible for paying any outstanding taxes and duties as per your country’s law and customs. Client will be responsible for additional shipping charges if items are returned to sender.
Contact us at store@bt-miners.tech or 813-820-0668 if you have any questions.
All products on our website are priced in US Dollars.
Payment made by credit or debit card may subject to card processing fees.
We can accept payment by credit/ debit card, wire transfer, ACH transfer (through our online portal), and crypto.
*Machine prices will fluctuate according to the current market price.*
All orders will be dispatch in the order which they were received. Pre-orders typically ships at the end of the month of the batch but may delay if manufacturer delays release/shipment. In stock machines ship in 3-7 business days from our warehouse in China. Bulk orders may release a few days later.
We always try to ship as soon as we can via USP or DHL after full payment has been received and verified.
International shipping usually takes about 5-8 business days. Due to changing regulations, we will not be able to cover duty tax for all orders entering USA. Deliveries to other countries may require customers to clear customs and pay duty tax. Please notify us right away if documents are requested by customs as improper filing may result in higher fees and/or delays.
All sales are final and non-refundable on any terms.
Want to find more Similar Miners?
FAQs
-
What Is The Lifespan Of This Mining Machine?
The lifespan of mining hardware is influenced by usage intensity, environmental factors like temperature, humidity, and dust. Proper maintenance and optimal conditions can significantly extend its longevity.
-
How Does Electricity Cost Impact Profitability?
Electricity costs play a crucial role in mining profitability, as high rates can quickly offset profit. Therefore, it is vital to access local electricity costs to determine if mining is viable. With high electricity costs and high liquidity of digital assets, investing in an energy-efficient miner becomes even more important.
-
What is the hashrate of the Antminer S23 Hyd 3U?
-
The S23 Hyd 3U delivers up to 1.16PH/s, making it one of the highest-performance hydro miners from Bitmain.
-
-
What power requirements does the S23 Hyd need?
It requires 380–415V three-phase power and an LP34 connector, suitable for industrial mining farms.
-
It requires 380–415V three-phase power and an LP34 connector, suitable for industrial mining farms.
No. Its power, cooling, and electrical requirements make it suitable only for professional mining facilities.
-
What cooling system does the S23 Hyd use?
It uses a hydro-cooling loop with controlled temperature, flow rate, and coolant purity.
-
Which coins can the S23 Hyd mine?
It supports all SHA-256 coins including BTC, BCH, and BSV.
-
What is the energy efficiency of the S23 Hyd 3U?
It achieves 9.5J/TH, one of the best efficiency ratings in the hydro ASIC category.
-
Does BT-MINERS ship this miner internationally?
Yes. BT-MINERS offers fast worldwide shipping with secure packaging and inspection.
-
Is this miner covered by Bitmain warranty?
Yes, the S23 Hyd typically comes with a 365-day factory warranty.
-
Can BT-MINERS assist with farm-level deployment?
Yes. Our team provides support for bulk orders, logistics, and mining farm integration.
-
What infrastructure is required to run the S23 Hyd?
You need hydro-cooling equipment, a 3-phase power system, proper piping, coolant, and stable ventilation.
